This step by step guide shows how to log sessions from the users on an UAG.
In UAG2100 I need to log each session per User.
Actually, it's possible to log IP and traffic, but no time and dates.
Where can I see all sessions with time information?
Solution:
The sessions in monitor > system status > session monitor page will show the current existing sessions on UAG. It will disappear after the session gets a timeout.
But you can save the logs per USB or syslog server.
USB Storage:
(1) Plugin USB to UAG. And enable USG function.
Configuration > System > USB Storage > Enable USB storage service.
(2) Go to Configuration > Log & Report > Log Setting > Enable USB storage.
Enable "traffic log" in log setting.

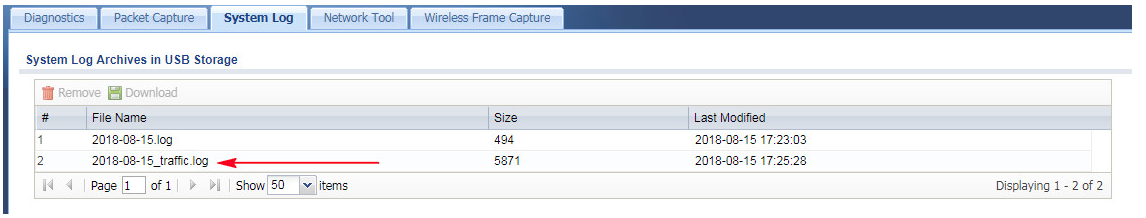

(3) You can download the log by Maintenance > Diagnostics > System log .
Syslog server:

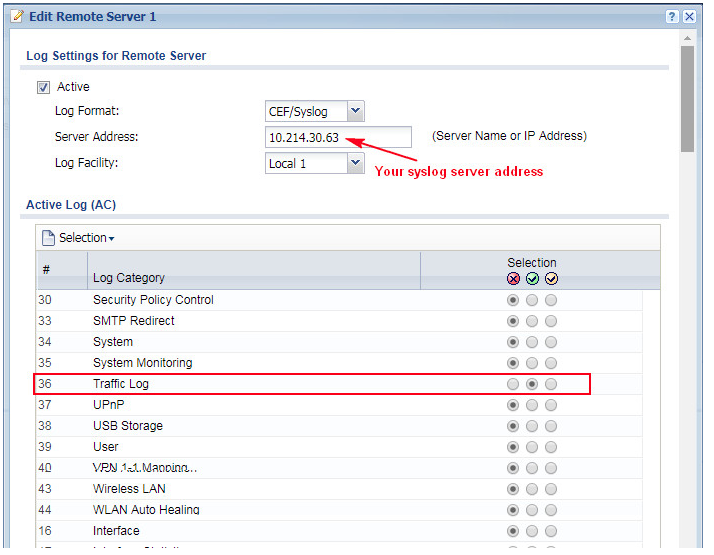

1. Go to Configuration > Log & Report > Remote Server 1
Enter your syslog server address and enable “Traffic Log”.

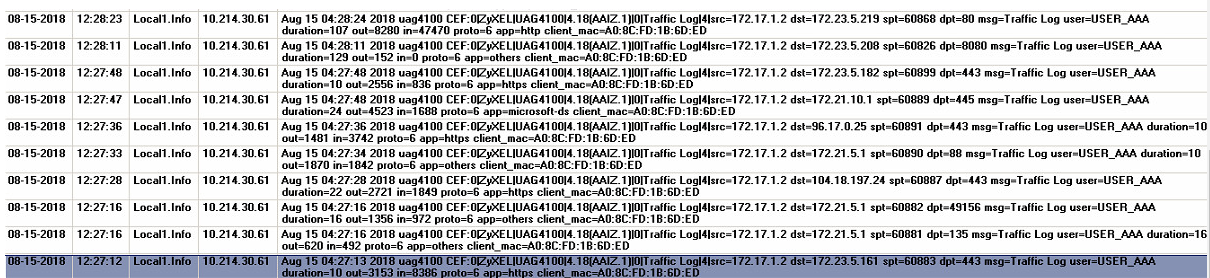

2. Then you can record all of the session logs on your server.
It will including time/username and source/destination address.
