What OIDs do the Zyxel firewalls (USG/ATP/VPN) use to monitor key parameters?

Created - Updated
Serhii Boiarynov
Idea generator
Great answers
Master (Platinum)
Print Friendly and PDF
Have more questions? Submit a request
The following OIDs are used to monitor the basic operating parameters of our security gateways:
  • .1.3.6.1.4.1.890.1.6.22.1.1.0     System CPU current Usage
  • .1.3.6.1.4.1.890.1.6.22.1.2.0     System RAM current Usage
  • .1.3.6.1.4.1.890.1.6.22.1.3.0     System CPU 5 sec Usage
  • .1.3.6.1.4.1.890.1.6.22.1.4.0     System CPU 1 min Usage
  • .1.3.6.1.4.1.890.1.6.22.1.5.0     System CPU 5 min Usage
  • .1.3.6.1.4.1.890.1.6.22.1.6.0     System current session number
  • .1.3.6.1.4.1.890.1.6.22.1.7.0     Systen Flash Usage
  • .1.3.6.1.4.1.890.1.6.22.2.1.0     IPSec VPN total throughput
  • .1.3.6.1.4.1.890.1.15.3.1.6.0     Firmware version and build time
  • .1.3.6.1.4.1.890.1.15.3.1.11.0     Product Name
  • .1.3.6.1.4.1.890.1.15.3.1.12.0     Serial Number

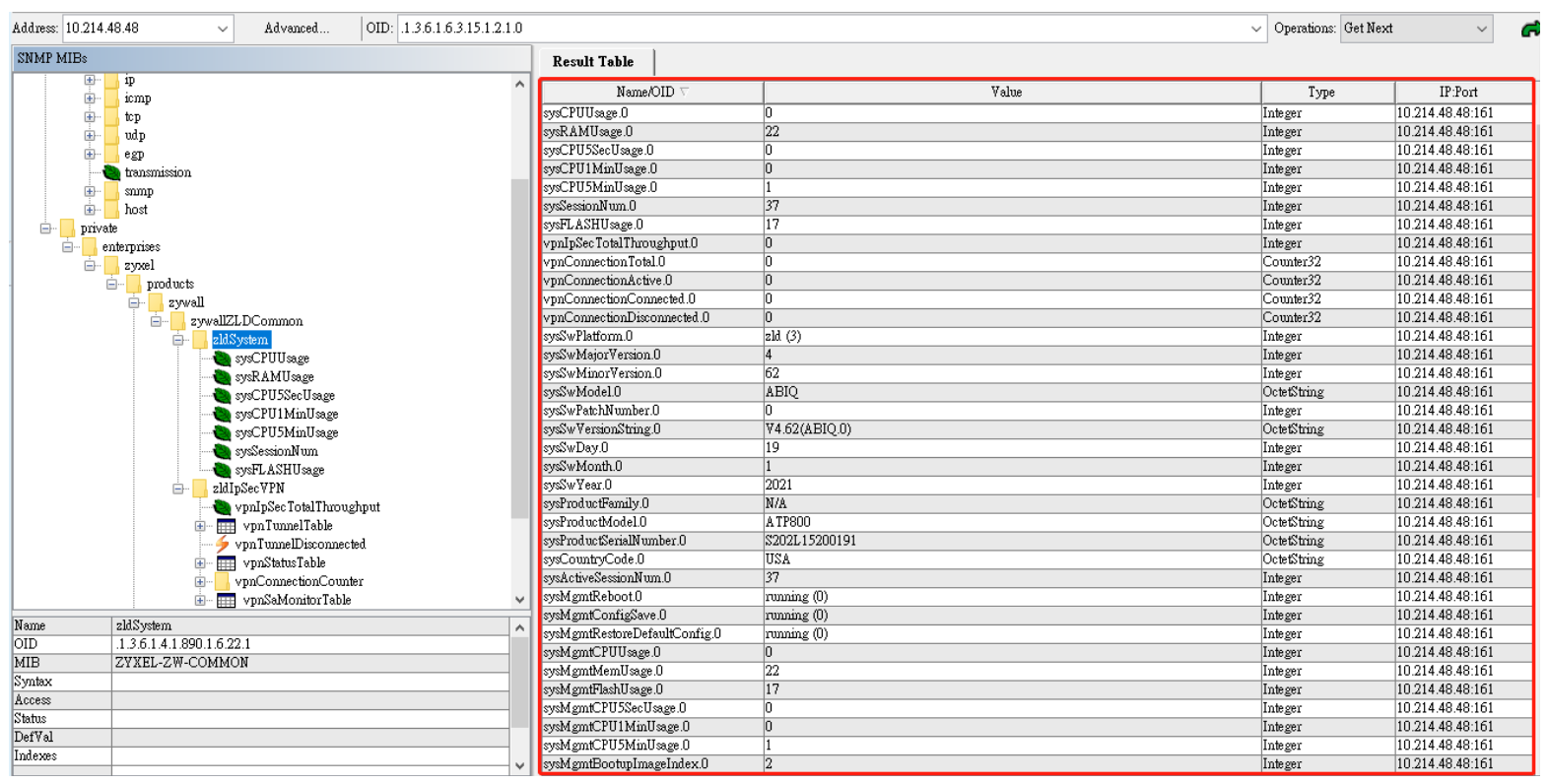

You can use the following graphic as reference:


The mib files needed to manage the USG/ATP/VPN devices via the SNMP protocol are available in our Zyxel Download Library (Search Model & Pick MIB File from List!).
Example: USG FLEX 100! - Download MIB File now!
