Connecting antennas to the WAC6553D-E

This article tells you about the compatible Antennas available for the WAC6553D-E and how certain antennas are being connected to it.

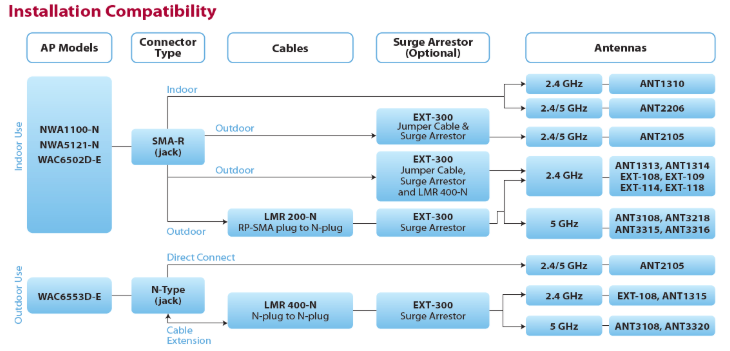

As the below installation compatibility table, you will see which antenna is recommended for the WAC6553D-E.

You can check the antenna detail information by the following link:
https://www.zyxel.com/products_services/2-4-5-GHz-Indoor-Outdoor-Antenna-Antennas-and-Cables/specification

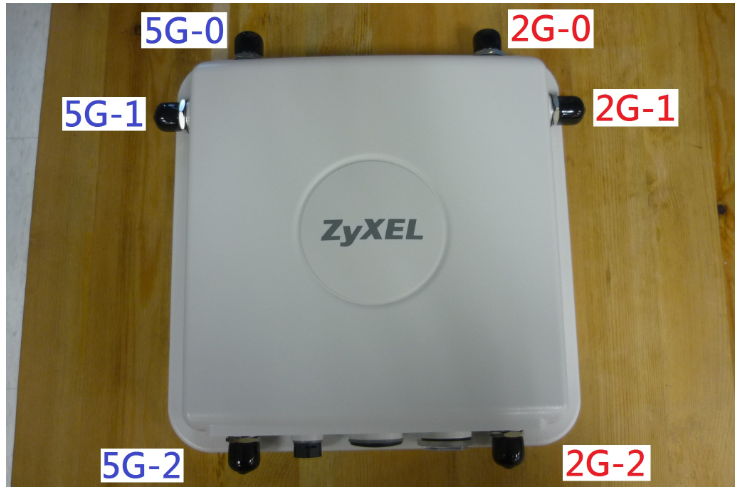

If a customer wants to connect two antennas or a MIMO antenna that only has two connectors on the WAC6553D-E, connect the antennas with 0 and 1 positions.
