This step by step guide shows how to schedule the SSID via Script on USG/ATP/VPN/NXC/UAG. This can be used to turn off/on the broadcast of an SSID for certain times.
Table of Content
3. Disable SSID command (2.4GHz)
4. Disable SSID command (5GHz)
5. Enable SSID command (2.4GHz)

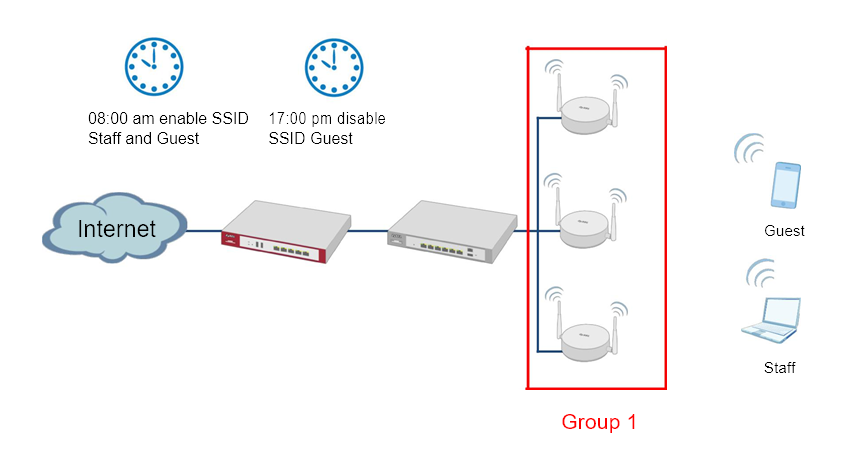

1. Scenario
- On the days off, the guest SSID is not open for use.
- Internet access is blocked but the clients still can access the LAN subnet.
2. Preparation
- Need to know the AP_Group name.
- SSID profile binding by AP Group.
- Need to know the SSID name.
- SSID running times
- schedule run command and concept.
- Schedule run command just can run 1 script only, so configuration needs to be done script by script

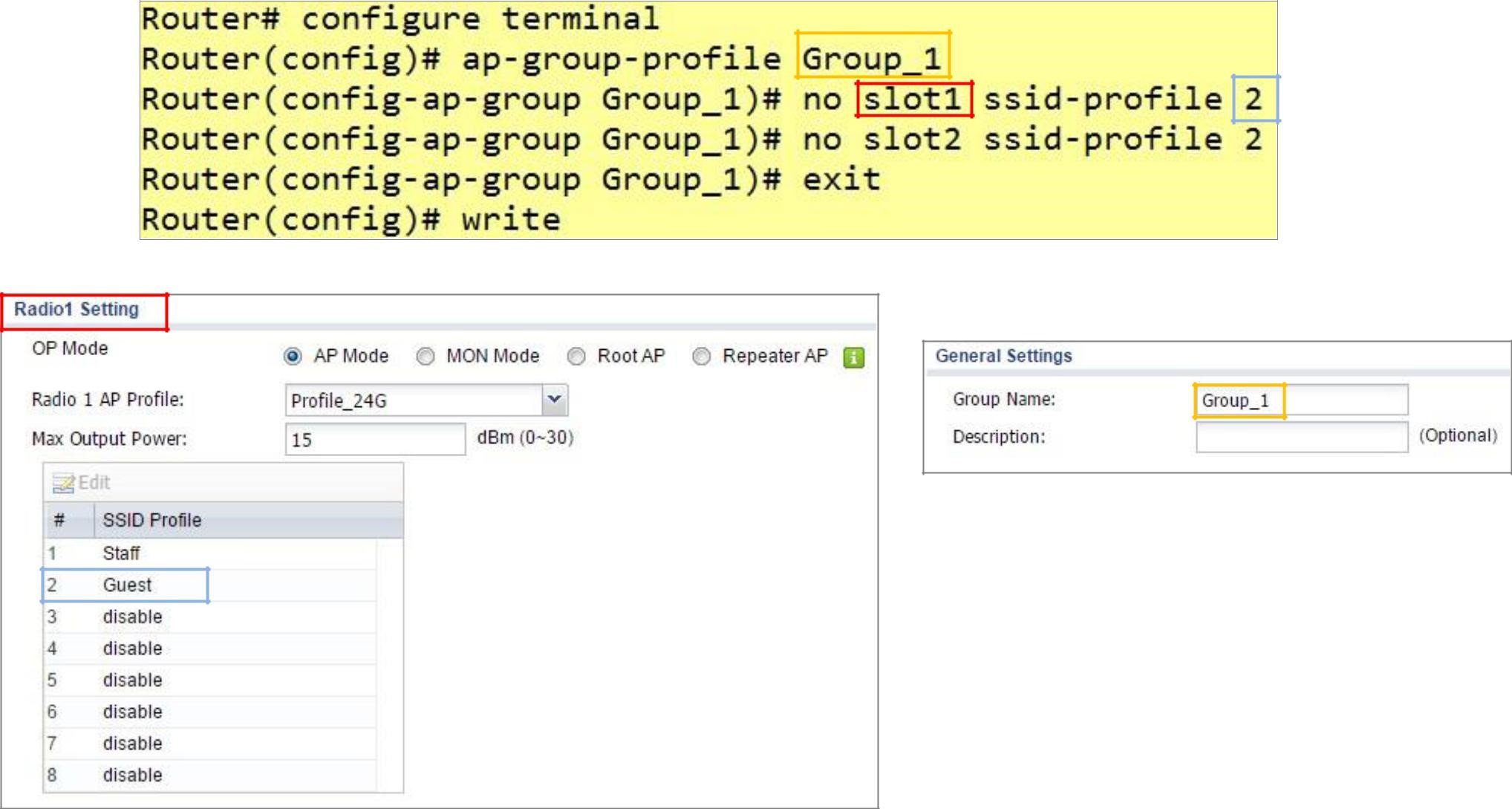

3. Disable SSID command (2.4GHz)
4. Disable SSID command (5GHz)

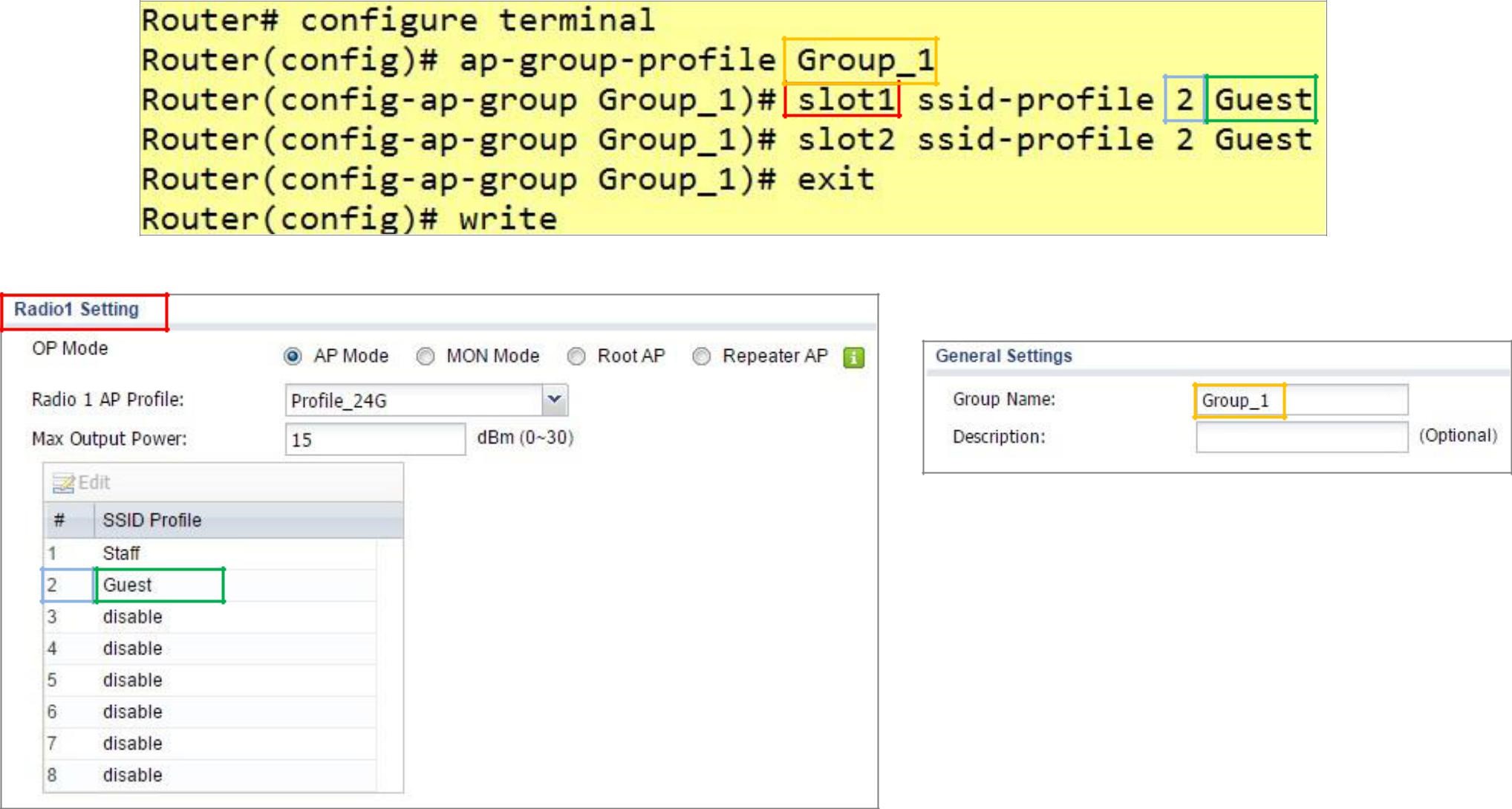

5. Enable SSID command (2.4GHz)
6. Enable SSID command (5GHz)

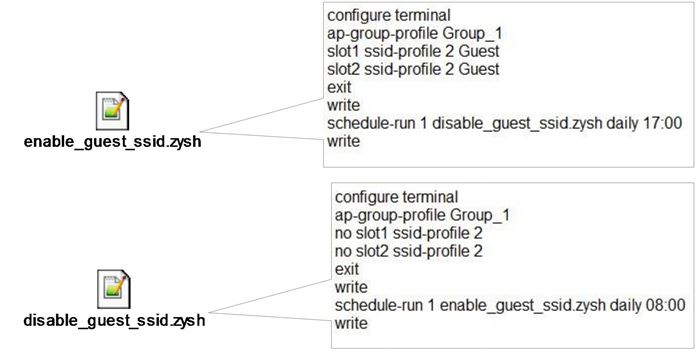

7. Preparation of script-file
- Copy the command to the notepad and save as ".zysh" file.
- The schedule run command is “schedule-run 1 zysh daily 17:00”
- for the loop, it is necessary to enable script call - the next action is disabled the script.

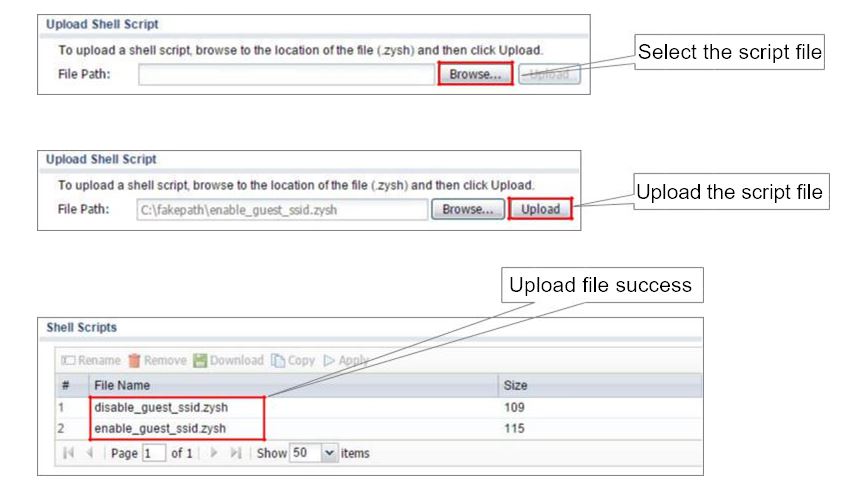

8. Upload script file
Maintenance > File Manager > Shell Script
9. Run the script
- For the first time, it is necessary to manually enter the command to run the script file

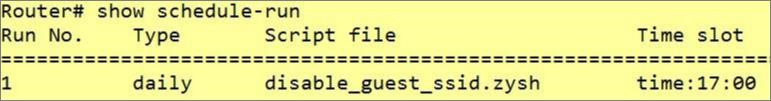

- Check the schedule run status command
- Disable the schedule run command
