Are you unsure what Access Point you're going to choose for your deployment, then this article will determine what is the right choice for you! In this article, we will look at the following devices WAC6552D-S, NAP353 (Outdoor), WAC6303D-S, WAC6303D-S, NWA110AX, NWA210AX, WAX510D, WAX610D, WAX650S

WiFi 5 (AC) Access Points

WAC6552D-S (Outdoor)

- 2x2 MIMO Smart antenna

- Throughput 866 Mbps (5GHz), 300 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 10 dBi (5 GHz), 5 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone/Controller mode

Special features

- Designed for harsh outdoor environments with up to IP67 industrial-grade weatherproofing

- a field-proven smart antenna that dynamically changes signal pattern and mitigates interference to extend coverage and provide a higher reliability to mobile clients

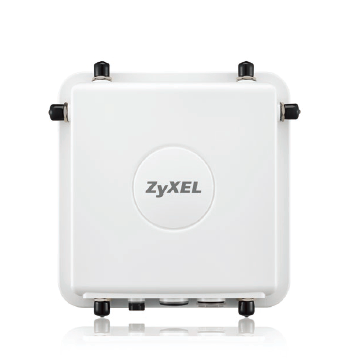

NAP353 (Outdoor)

- 3x3 MIMO Smart antenna

- Throughput 1300 Mbps (5GHz), 450 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain: Depending on the external antenna

- Compatible with Nebula

Special features

- Designed for harsh outdoor environments with up to IP66 industrial-grade weatherproofing



WAC6303D-S



- 2x2 (2,4 GHz) 3x3 (5 GHz) MIMO smart antenna

- Throughput 1300 Mbps (5GHz), 300 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 4 dBi (5 GHz), 3 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone/Controller mode

Special features

- Up to 300% more performance from MU-MIMO technology

- Solid-state capacitors and advanced heat dissipation ensure high reliability and long life—even in the toughest environments

- field-proven smart antenna that dynamically changes signal pattern and mitigates interference to extend coverage and provide a higher reliability to mobile clients



WAC6303D-S



- 2x2 (2,4 GHz) 3x3 (5 GHz) MIMO smart antenna

- Throughput 1300 Mbps (5GHz), 300 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 4 dBi (5 GHz), 3 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone/Controller mode

Special features

- Up to 300% more performance from MU-MIMO technology

- Solid-state capacitors and advanced heat dissipation ensure high reliability and long life—even in the toughest environments

- field-proven smart antenna that dynamically changes signal pattern and mitigates interference to extend coverage and provide a higher reliability to mobile clients





WiFi 6 (AX) Access Points

NWA110AX

- 2x2 MIMO optimized Antenna

- Throughput 1200 Mbps (5GHz), 575 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 6 dBi (5 GHz), 5 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone

Special features

Advanced Cellular coexistence (minimizes interference from 4G/5G networks)



NWA210AX

- 4x4 + 2x2 MIMO embedded antenna

- Throughput 2400 Mbps (5GHz), 575 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 6 dBi (5 GHz), 5 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone

Special features

Advanced Cellular coexistence (minimizes interference from 4G/5G networks)



WAX510D

- 2x2 Dual-optimized antenna

- Throughput 1200 Mbps (5GHz), 575 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 6 dBi (5 GHz), 5 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone/Controller mode

Special features

Dual-optimized antenna for optimal performance in-wall/ceiling-mount installations



WAX610D

- 4x4 + 2x2 MU-MIMO dual-optimized antenna

- Throughput 2400 Mbps (5GHz), 575 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 6 dBi (5 GHz), 5 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone/Controller mode

Special features

- Advanced Cellular coexistence (minimizes interference from 4G/5G networks)

- Recommended with our XS1930 series switches for highest capacity



WAX650S

- 4x4  MU-MIMO smart antenna

- Throughput 2400 Mbps (5GHz), 1150 Mbps (2,4 GHz)

- Antenna gain (strength) peak gain 5.8 dBi (5 GHz), 3 dBi (2,4 GHz)

- Compatible with Nebula/Stand-alone/Controller mode

Special features

- Advanced Cellular coexistence (minimizes interference from 4G/5G networks)

- - field-proven smart antenna that dynamically changes signal pattern and mitigates interference to extend coverage and provide a higher reliability to mobile clients

- Recommended with our XS1930 series switches for the highest capacity
