Zyxel Accessories - Enhance Your Zyxel Networking Setup with Versatile Mounting Accessories 5x / 6x Series icon

Avatar
Raphael
  • Updated

Are you looking to optimize your Zyxel networking equipment installation while ensuring the utmost convenience and reliability? Look no further than the comprehensive range of Zyxel Mounting Accessories. In this article, we will look at various mounting solutions designed to install and protect Zyxel networking products from harsh environments: Zyxel Waterproof Enclosure, Zyxel Pole-Mounting-Kits(ZZ0103F and ZZ0106F), Zyxel Wall Mount-Mounting-Kits, Zyxel Ceiling mount with clips, Zyxel Desktop Mount

Waterproof enclosure

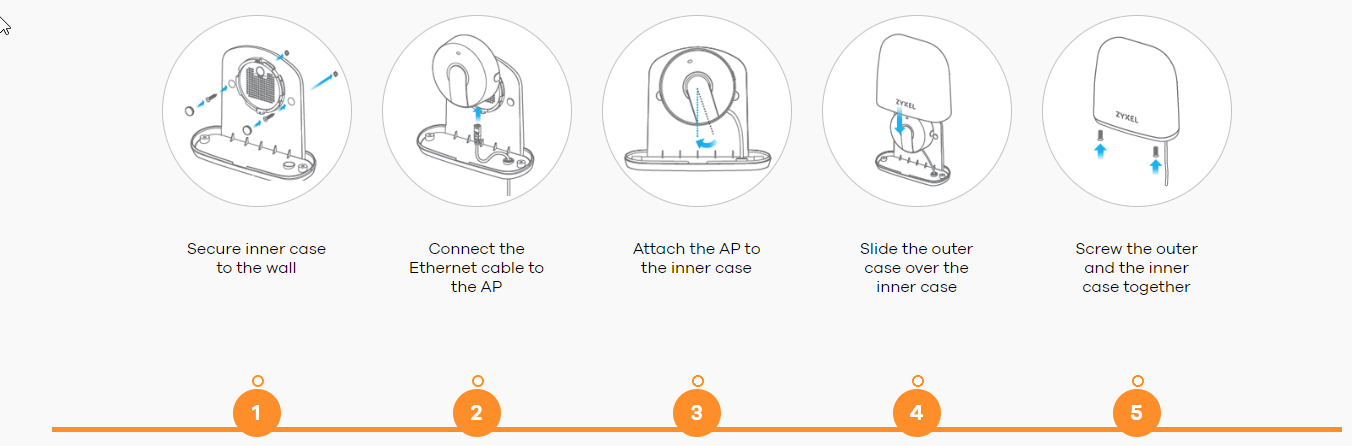

Our waterproof enclosure offers robust protection for Zyxel WiFi Access Points, ensuring they thrive in challenging settings. Easily mount your AP on walls or poles with this durable enclosure.

Designed to withstand extreme temperatures ranging from -20°C to 50°C, this enclosure is not only waterproof with a certified IPX5 rating but also features UV-stabilized plastic, extending the lifespan of your AP. It's the ultimate choice for reliable waterproofing

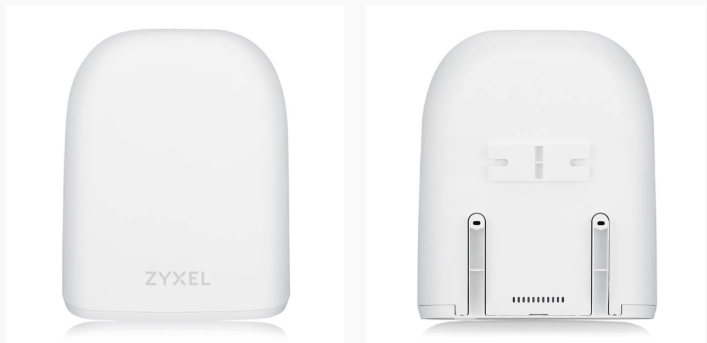

P/N: ACCESSORY-ZZ0102F

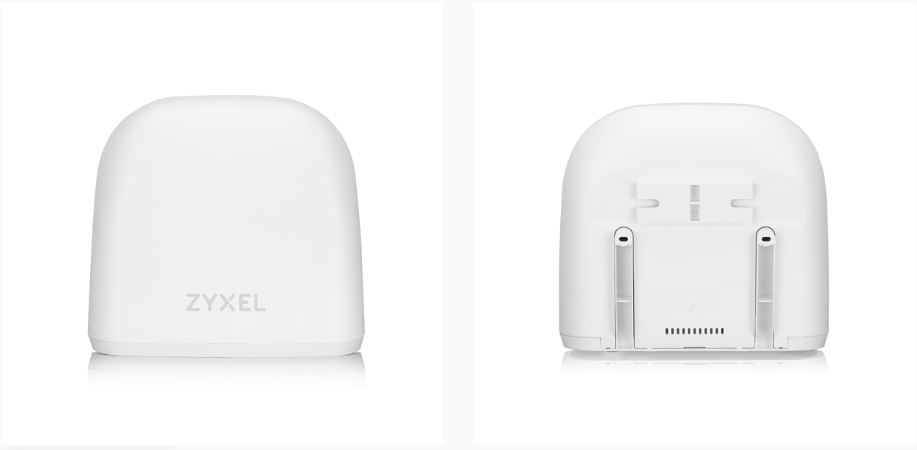

P/N: ACCESSORY-ZZ0113F



Waterproof Enclosure Compatibility List

 ACCESSORY-ZZ0113FACCESSORY-ZZ0102F
Description- Operating temperature range: 50°C to -20°C- IPX5 rating- Wall/Pole mounting (pole mount kit sold separately)- Operating temperature range: 50°C to -20°C- IPX5 rating- Wall/Pole mounting (pole mount kit sold separately)
Dimensions311.2 × 250.2 × 87.2 mm238.54 × 249.72 × 86.97 mm
Weight800 g639 g

Supported Models

ACCESSORY-ZZ0113F: WBE630S, WAX610D, WAX620D-6E, WAX630S, WAX640S-6E, WBE510D, WBE530, WAX510D, NWA110BE, NWA130BE, NWA210BE, NWA240BE, NWA110AX, NWA210AX, NWA220AX-6E

ACCESSORY-ZZ0102F: WAX510D, WAX610D, WAX620D-6E, WAX630S, WAC500, NWA110AX, NWA210AX, NWA220AX-6E, NWA1123-AC Pro, NWA50BE, NWA50BE PRO, NWA90BE, NWA90BE PRO, NWA50AX, NWA50AX Pro, NWA90AX, NWA90AX Pro

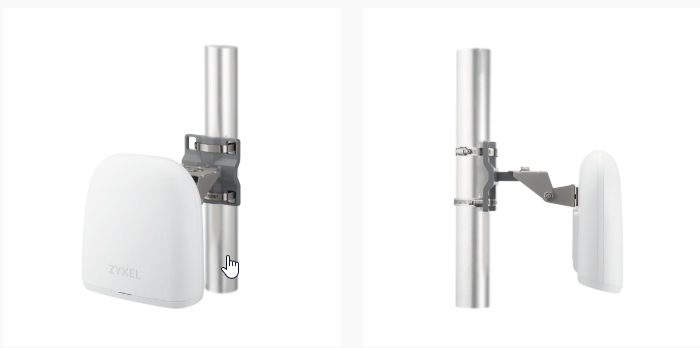

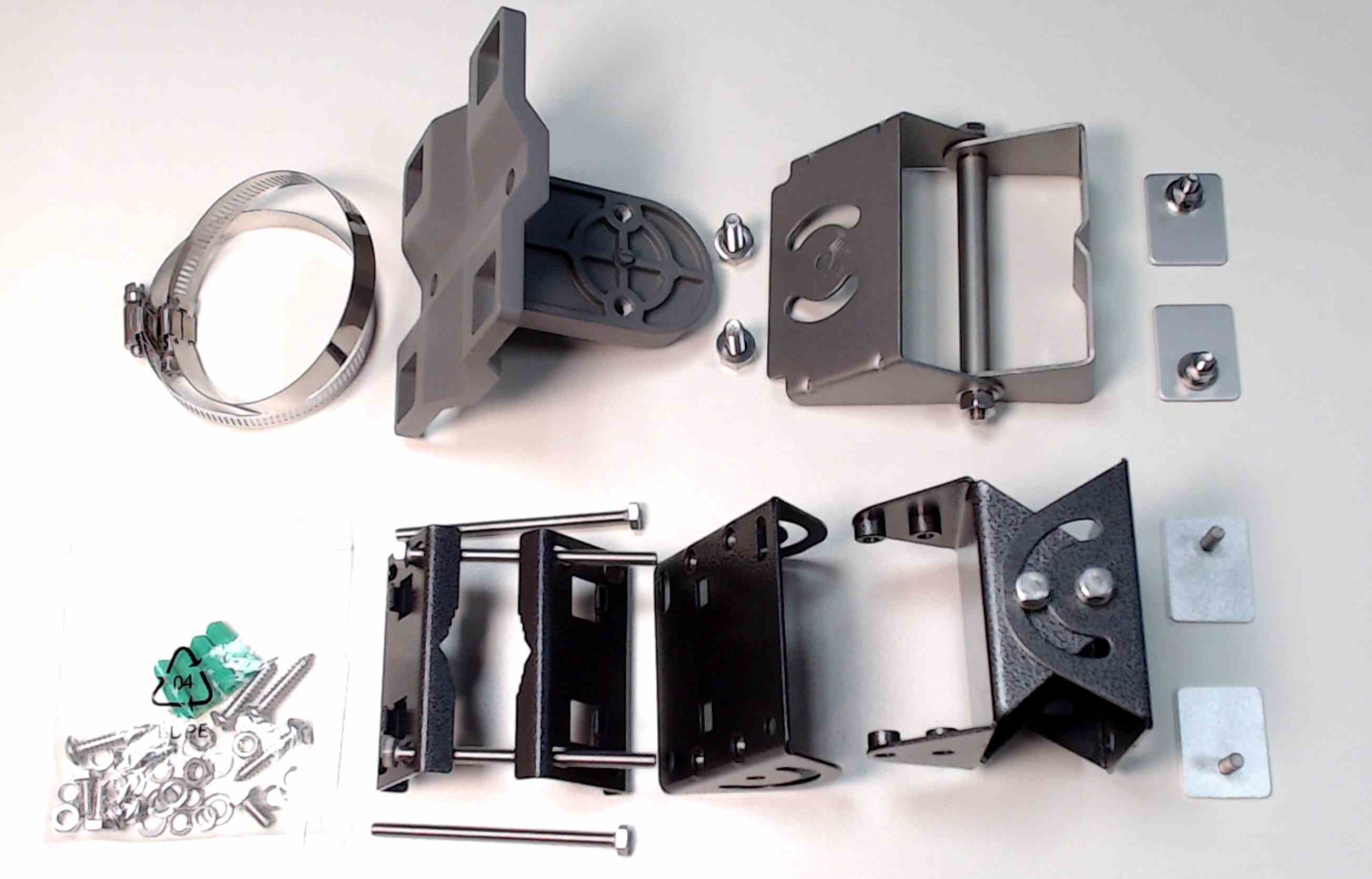

Zyxel Pole-Mounting-Kits

ACCESSORY-ZZ0103F

  • Claws with screw winding as steal belt
  • Pole arm
  • Ankle between outdoor enclosure and pole arm
  • Mounting plate for the leashes on the outdoor enclosure ACCESSORY-ZZ0102F

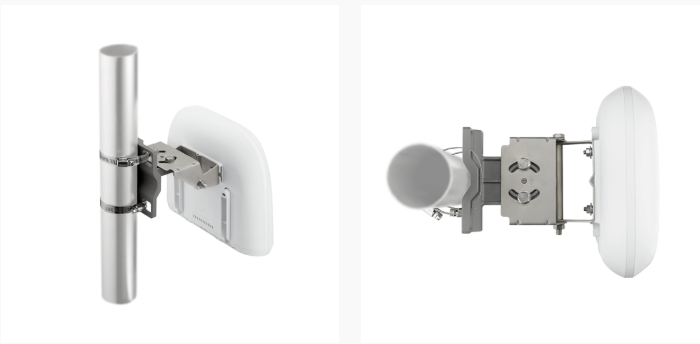

ACCESSORY-ZZ0106F

  • Two metal plates for pole mounting
  • Fixation plate with nuts for the long screws that also can be used for wall mounting

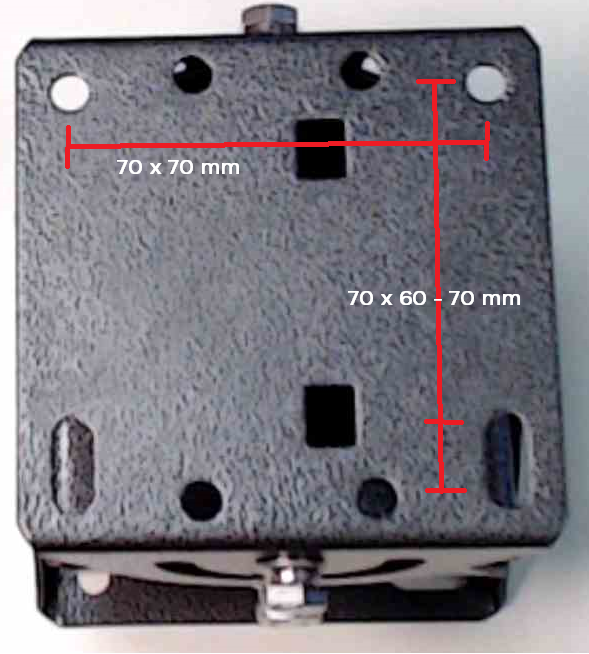

  • Ankle between pole mounting and outdoor accessory, compatible with most of the outdoor routers and access points from Zyxel. Holes distance 7x7cm, lower holes vary from 6-7cm



T-bar clips

These mounting clips provide an easy and secure solution for installing access points (AP) without causing any damage to the ceiling tiles or grid.

P/N: ACCESSORY-ZZ0105F

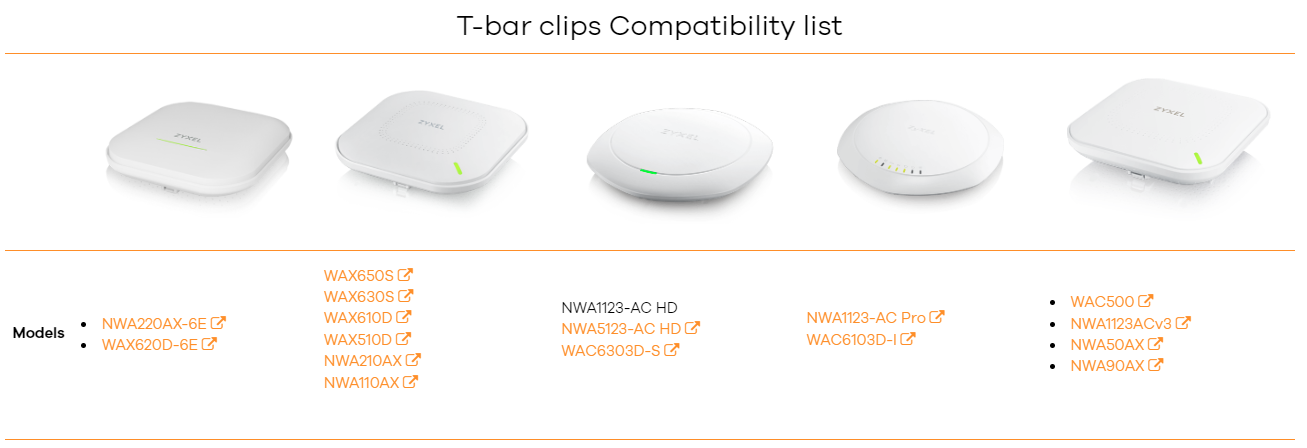

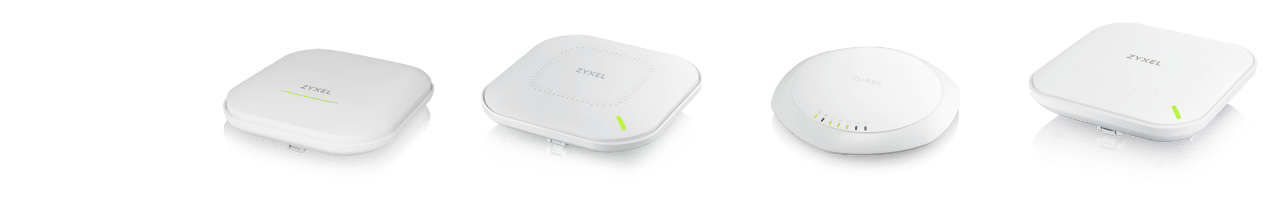

Models: P/N: ACCESSORY-ZZ0105FCompatible with all Zyxel ceiling-mounted access points

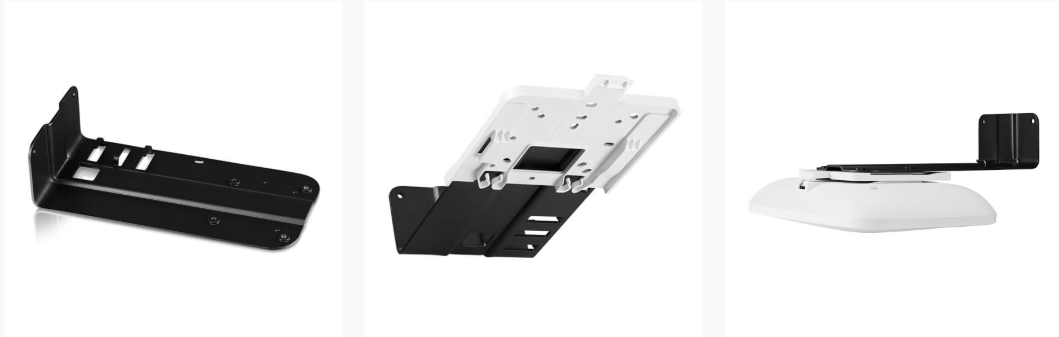

Wall Mount Arm

P/N: ACCESSORY-ZZ0108F

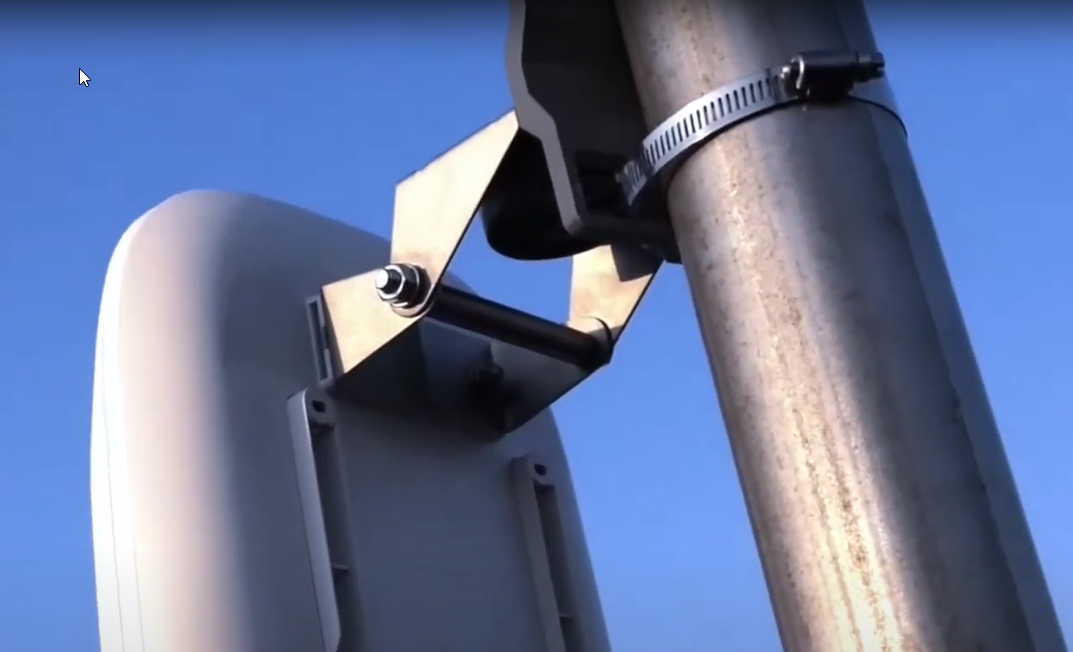

Overview of the fastening system on our YouTube channel
