VLAN Isolation [Network Switch] - Configure Layer 2 isolation except for Servers or Printers

Introduction

VLAN (Virtual Local Area Network) isolation is a crucial feature in Zyxel switches that empowers network administrators to control network traffic effectively and enhance security by allowing communication only between specific devices within a VLAN. This article provides an in-depth understanding of VLAN isolation, its functionality, and step-by-step instructions on how to configure it on your Zyxel switch. Additionally, we will explore a real-world scenario to illustrate the practical application of VLAN isolation.

What is VLAN Isolation?

VLAN isolation is a network configuration that enables the segmentation of devices within the same VLAN. It allows you to isolate specific devices while permitting communication with designated exceptions like servers or printers. VLAN isolation enhances network security by preventing unauthorized communication within a VLAN and ensures efficient traffic management.

How VLAN Isolation Works

VLAN isolation operates on the following principles:

1. Port Isolation within a VLAN

• VLAN isolation simplifies port isolation within a VLAN by allowing you to specify which ports should not be isolated. This is achieved by adding these ports to the "promiscuous port list."
• The switch automatically categorizes the remaining ports within the same VLAN as isolated ports and restricts traffic between them.

2. Promiscuous Ports

• Promiscuous ports are exceptions within a VLAN. Devices connected to these ports can communicate with any port within the same VLAN, including other promiscuous ports and isolated ports.
• Promiscuous ports are typically assigned to devices like servers or printers that need to interact with various devices within the VLAN.

3. Isolated Ports

• Isolated ports constitute the majority of ports within a VLAN. Devices connected to isolated ports can only communicate with promiscuous ports within the same VLAN.
• Communication between isolated ports is automatically blocked by the switch to enforce isolation.

Configuring VLAN Isolation

Here's a step-by-step guide on how to configure VLAN isolation on your Zyxel switch:

1. Access Switch Configuration: Log in to the web-based management interface of your Zyxel switch.

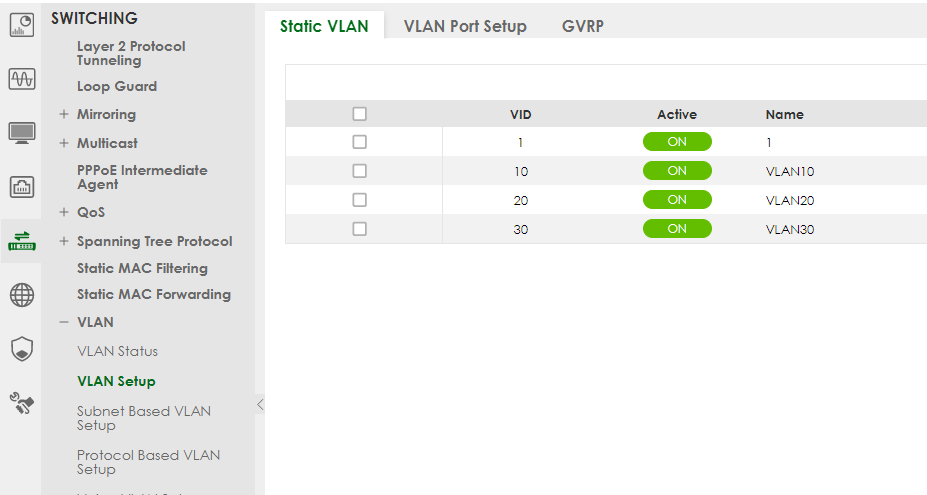

2. Configure VLANs: Ensure that you have already configured the VLANs on your switch. VLAN isolation depends on pre-existing VLAN configurations. Navigate to:

   • SWITCHING > VLAN > VLAN Setup > Static VLAN

     •

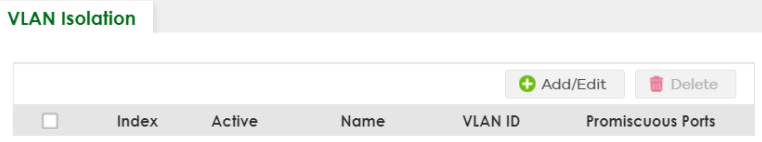

3. Access VLAN Isolation Settings: Navigate to "SWITCHING > VLAN Isolation" in the management interface.


4. Create a New Rule: Click on "Add/edit" to create a new VLAN isolation rule.


5. Enable the Rule: Activate the rule by clicking the "Active" button.

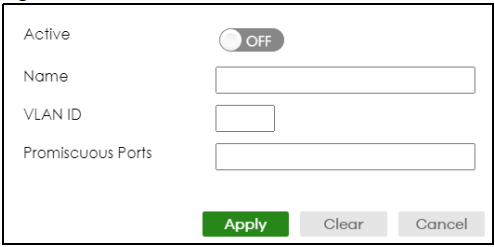

6. Configure Rule Details:

   • Name: Enter a descriptive name for the VLAN isolation rule.
   • VLAN ID: Specify the VLAN ID for which you want to apply the isolation.
   • Promiscuous Ports: Add the port or ports that should be designated as promiscuous ports. These ports will have unrestricted communication within the VLAN.


7. Save Configuration: After entering the required details, save the configuration.

Practical Scenario: VLAN Isolation in Action

Let's explore a real-world scenario to illustrate the practical application of VLAN isolation on a Zyxel GS1920-8HP switch:

Scenario: You have a Zyxel GS1920-8HP switch with devices connected as follows:

• PCs connected to ports 2, 3, and 4.
• A server connected to port 6.
• Your firewall connected to port 10.

All these devices are part of the same VLAN, VLAN20. Here's what you want to achieve:

• PCs should not be able to communicate with each other.
• PCs should be able to communicate with the server and the firewall.

To accomplish this, follow these steps:

1. Access Switch Configuration: Log in to the web-based management interface of your GS1920-8HP switch.

2. Configure VLANs: Ensure that you have configured VLAN20 on your switch, including assigning the respective ports (2, 3, 4, 6, 10) to this VLAN.

3. Access VLAN Isolation Settings: Navigate to "SWITCHING > VLAN Isolation" in the management interface.

4. Create a New Rule: Click on "Add/edit" to create a new VLAN isolation rule for VLAN20.

5. Enable the Rule: Activate the rule by clicking the "Active" button.

6. Configure Rule Details:

   • Name: Give the rule a descriptive name, e.g., "VLAN20 Isolation."
   • VLAN ID: Set the VLAN ID to 20 (matching your VLAN configuration).
   • Promiscuous Ports: Add ports 6 and 10 to the promiscuous port list. These ports will allow communication to the server, and the firewall.


7. Save Configuration: After entering the details, save the configuration.

Now, in this scenario, the PCs within VLAN20 cannot communicate with each other due to the VLAN isolation. However, they can communicate with the server (connected to port 6) and the firewall (connected to port 10), as both of these ports are designated as promiscuous. This setup ensures that essential communication is maintained while preventing unnecessary traffic between PCs within the VLAN.

By following these steps, you can successfully implement VLAN isolation to enhance network security and optimize communication within your VLANs on your Zyxel switch.
