Jumbo Frames are Ethernet frames that exceed the standard 1500 bytes. When properly configured, they can significantly improve performance in local networks by reducing overhead. But Jumbo Frames can easily backfire if the entire network path isn't configured to support them, leading to dropped packets, fragmentation, and confusing errors.
Why Use Jumbo Frames?
| Benefit | Description |
|---|---|
| Lower TCP/IP overhead | Less header-to-payload ratio. |
| Reduced CPU interrupts | Fewer packets mean less work for the processor. |
| Optimized for 10G+/high-volume | Ideal for NAS, backups, video, large file transfers. |
Standard MTU: 1500 bytes
Typical Jumbo Frame: 9000 bytes (sometimes 9216, 9600, or even 16384+ depending on the protocol stack)
When Jumbo Frames Cause Problems
Jumbo Frames don’t just work automatically. If even one device along the path can’t handle them, you get:
Fragmentation or packet drops
Errors like
Message too longBroken connections or mysterious network issues
Recommended MTU Settings by Use Case
| Scenario | Recommended MTU |
|---|---|
| Standard LAN | 1500 |
| PPPoE via ISP | 1492 |
| IPsec VPN | 1436–1460 |
| VLAN-only (no tunneling) | 1522 |
| Jumbo Frames on 10G LAN | 9000 (or 9216) |
| Jumbo + VPN + VLAN (multi-overlay) | up to 9600–16384 |
Real MTU should always account for headers (Ethernet, VLAN, IP, TCP/UDP, IPsec, etc.)
Real Case: MTU 9000 ≠ 9000-Byte Payload
MTU was set to 9000, but any payload over 8968 bytes failed.
Test Setup:
Mac Studio (macOS 15.5)
Synology NAS
Zyxel XGS1250-12 switch
MikroTik router
Two adapters:
Built-in 10GBase-T
Sonnet Solo 10G SFP+ via Thunderbolt
Test methodology:
Ping tests from both interfaces using large payloads (ping -s) with and without source IP specification (-S).
Test Results:
| Source IP | Payload (-s) | Result |
|---|---|---|
| 192.168.1.14 | 8968 | ❌ 100% loss, Message too long |
| 192.168.1.14 | 8168 | ✅ 0% loss |
| 192.168.1.24 | 8968 | ❌ 100% loss |
| 192.168.1.24 | 8168 | ✅ 0% loss |
MTU 9000 Compatibility Test Report (Internal Adapter (10GBase-T))
Observation: MTU 9000 is set, but packets above 8968 bytes fail. This indicates a hardware or driver limit on payload size.

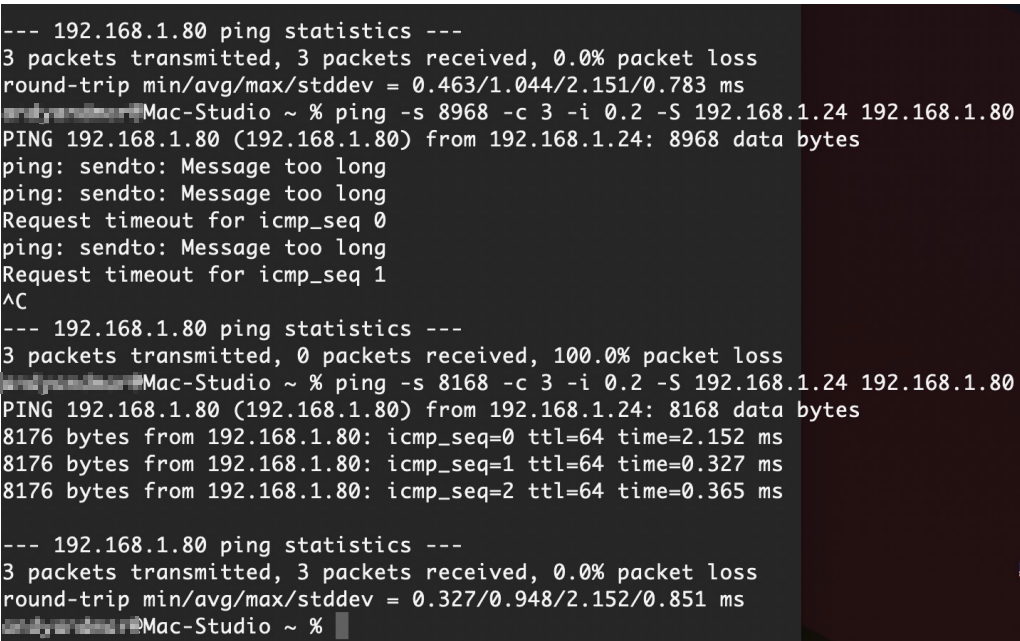

MTU 9000 Compatibility Test Report ( External Adapter (Sonnet Solo 10G SFP+) )
Observation: Identical behavior is observed. Packets of 8968 bytes do not pass, while 8168 bytes pass successfully. This indicates that the limitation does not apply only to the default adapter.
Key Findings:
Even with MTU set to 9000 in macOS, packets larger than ~8968 bytes were dropped.
The problem occurred across both adapters, so it’s not hardware-specific.
Most likely cause: limitation in the macOS network stack or adapter driver.
Zyxel switch’s Jumbo Frame support is confirmed (check datasheet)
Best Practices & Recommendations
Always test your real payload limits; don’t blindly set MTU to 9000.
Use
ping -s(macOS/Linux) orping -l(Windows) to test the actual max payload size.Make sure every device in the path (switches, adapters, NAS, firewalls) supports the MTU you set.
If you get
Message too longerrors:Drop down to 8168 bytes and test again.
Tune your MTU based on payload size, not just settings.
Conclusion
Jumbo Frame ≠ guaranteed 9000-byte payload support.
Just because you set MTU to 9000 doesn’t mean the system will handle packets of that size. Driver, OS, or hardware limitations may silently block packets that exceed a real threshold like ~8968 bytes.
Jumbo Frame can bring performance gains — but only if all parts of your network stack actually support it end-to-end.
