Zyxel Surge Protector [SUPERGO-GE] - Overview and Installation Guide for SUPERGO-GE

The SUPERGO-GE Ethernet Surge Protector (SURGEPRO-GE) is designed to shield commercial networking equipment from power interference, ensuring data security and prolonging device lifespan. This guide provides easy-to-follow instructions for installing and maximizing the benefits of this essential device.

Disclaimer!

This article offers a general overview of the series and may not apply uniformly to every model, software/firmware version. Before purchasing or using the device, please consult the model/version-specific documentation or reach out to technical support for accurate information.

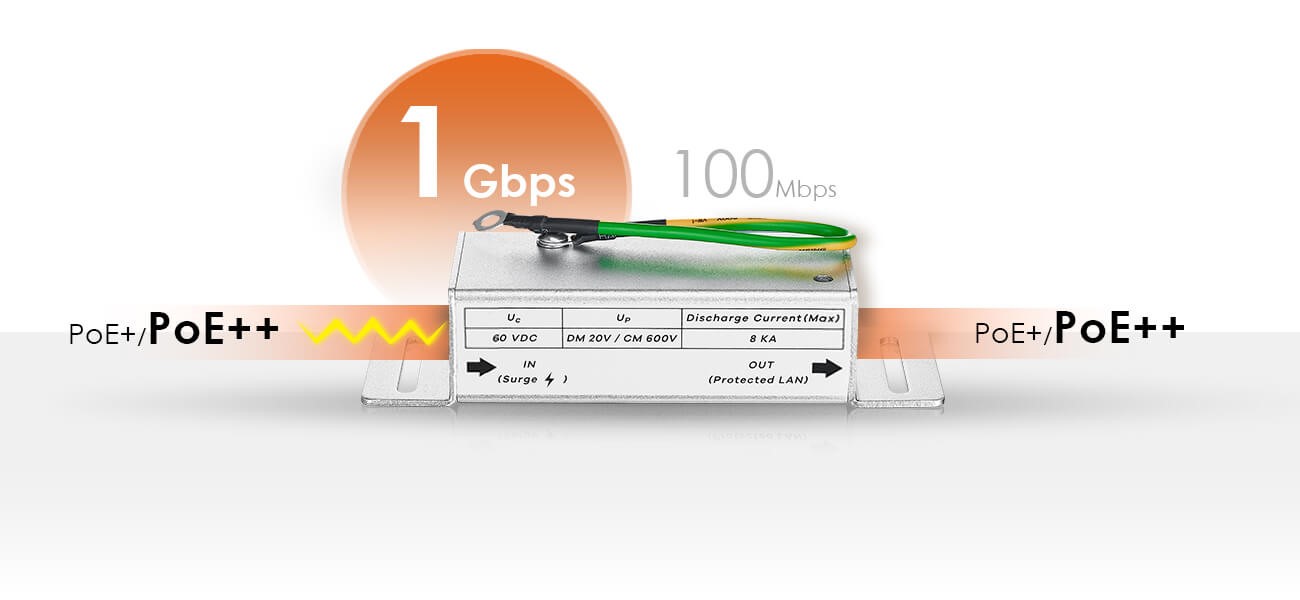

Benefits:

• Protects high-speed networks from surges and electrostatic discharges.
• Cost-effective solution for safeguarding Ethernet devices.
• Compatible with Power-over-Ethernet (PoE) and non-PoE devices.
• Supports connection speeds of up to 1 Gbps.

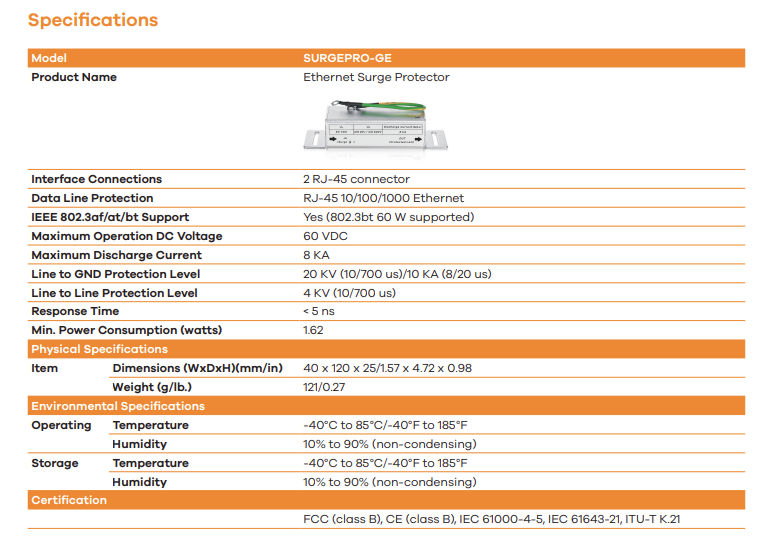

Specifications:

Important Notes:

• Ensure proper direction of installation with the ground cable connected to a grounding terminal to effectively protect against lightning and high-voltage surges.
• Do not connect Ethernet devices to power during installation.
• Avoid overlapping Ethernet cables connected to OUT (protected LAN) and IN (Surge) to prevent high-voltage surge transfer.
• Make sure the on-site grounding terminal has an earth resistance of less than 5 ohms or complies with electrical regulations. If unsure, consult an electrician or relevant authorities.

The following Table shows the Behavior of the SUPERGO-GE LED.

Installation Steps:

1. Grounding Connection:

   - Secure the SUPERGO-GE's ground cable to an on-site grounding terminal using a grounding screw (not included).

2. Connecting Protected LAN:

   - Connect an Ethernet cable (less than 20 cm) from the OUT port of SUPERGO-GE to the Ethernet device to be protected.

3. Surge Connection:

   - Use an Ethernet cable to connect both IN ports of SUPERGO-GE.

By following these installation guidelines, you can effectively protect your network equipment and ensure uninterrupted business operations with the SUPERGO-GE Ethernet Surge Protector.

Should you have any further questions, do not hesitate to consult the Data sheet for additional assistance:
SURGEPRO-GE Datasheet
SURGEPRO-GE Quick Start Guide
SURGEPRO-GE Certification and other materials
