[ADSL - mode] How to Access Modem over DSL and forward traffic via Bridge VES1724-56(b2)

How to Access Modem over DSL and forward traffic via Bridge VES1724-56(b2): How to Access Modem over DSL and forward traffic via Bridge with VES1724-56(b2).

Note: This article applies to ADSL operation mode only.

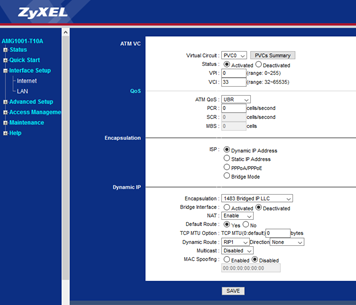

1. Modem Setup

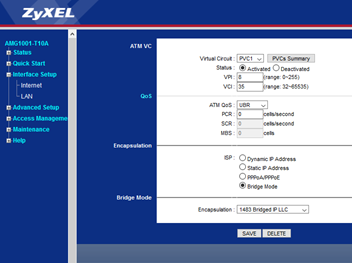

Create 2nd PVC with Bridge Settings

Disable Firewall

Check:

Now, please reboot device!

2. Verification

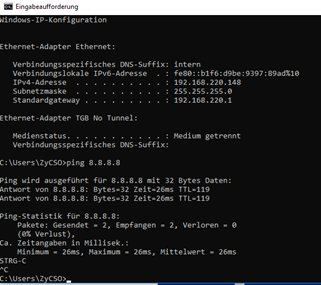

And check on LAN-Side. Here Client gets IP from VLAN200 over PVC 8/35:

3. DSLAM Settings

DSLAM Settings, here VES1724-56(b2):

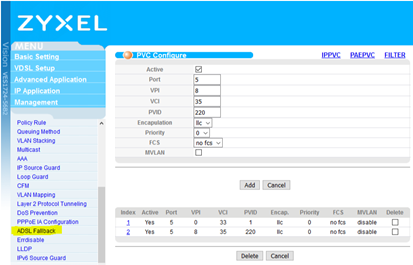

Create PVC for VLAN 1 & 200:

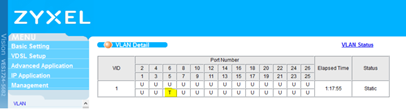

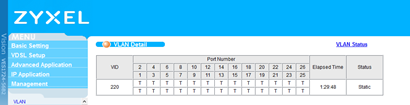

In addition, check the VLAN Settings, for ADSL connection on VDSL also VLAN1 must tagged to DSL-Port:

Done
