Nebula [AP] - How to setup DHCP & NAT Mode in Access Point

• If the AP management IP address is NOT part of “10.0.0.0/8”, SSID subnet becomes “10.0.0.0/8”.
• If the AP management IP address is part of “10.0.0.0/8”, SSID subnet becomes “172.16.0.0/12”

Sample scenario:

• Enable NAT mode on the SSID which is provided for Guest usage.

Configuration:

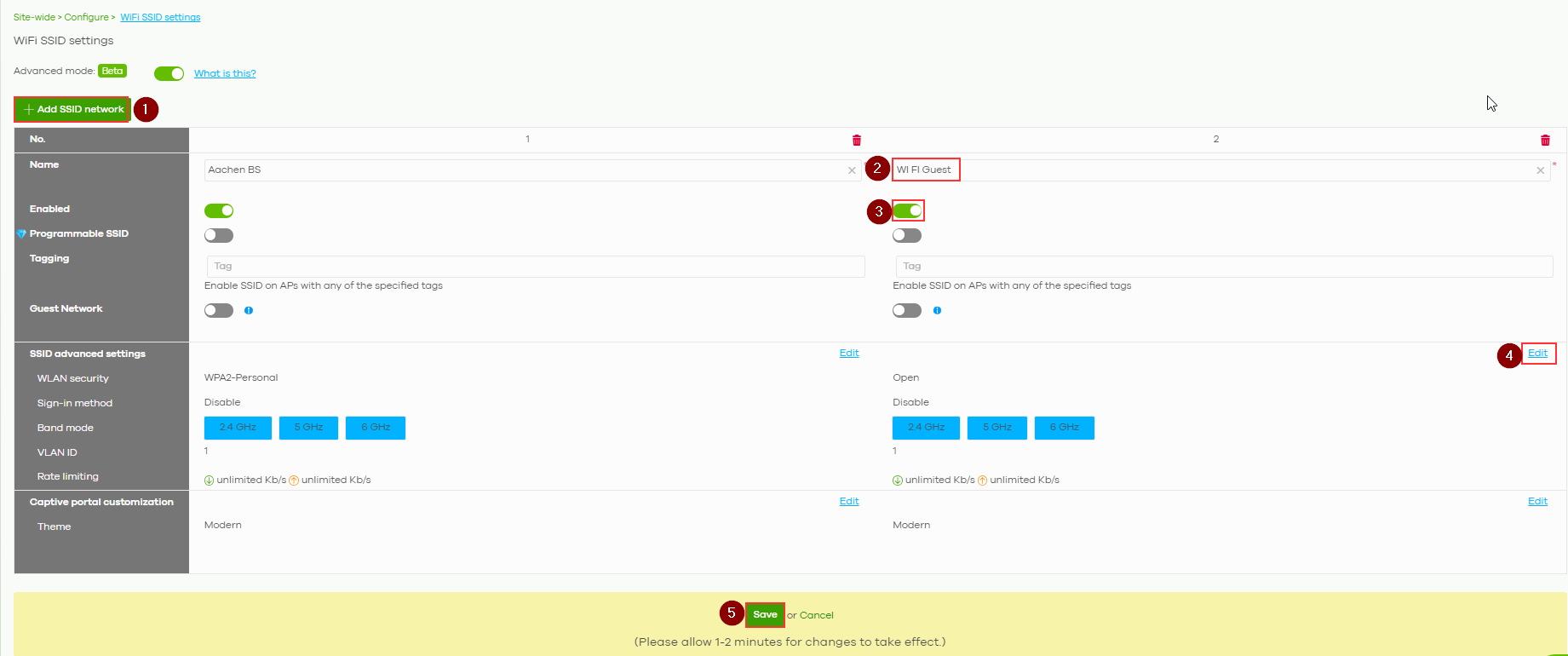

Go to Site-wide -> Configure -> WiFi SSID settings

• Click the "Add SSID Network" button.
• Provide a clear and comprehensible name for the SSID (Network Name).
• Toggle the network switch to "Enabled" the newly created network.
• Click the "Save" button to confirm your settings.
• Access the "SSID Advanced Settings" by clicking on the "Edit" option within that section

• After clicking on "Edit" you will be forwarded to the next page "SSID advanced settings"

Site-wide -> Configure -> Access points -> SSID advanced settings

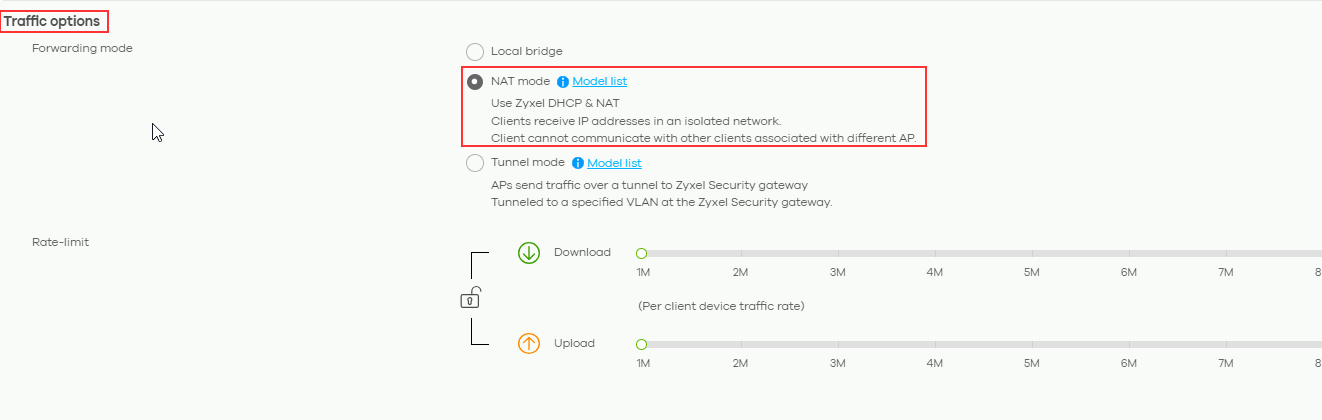

• In the "Traffic options" section, check the "NAT mode" box to activate this function.

A list of access points that support this functionality is available at the link in Nebula (NAT mode Model list).

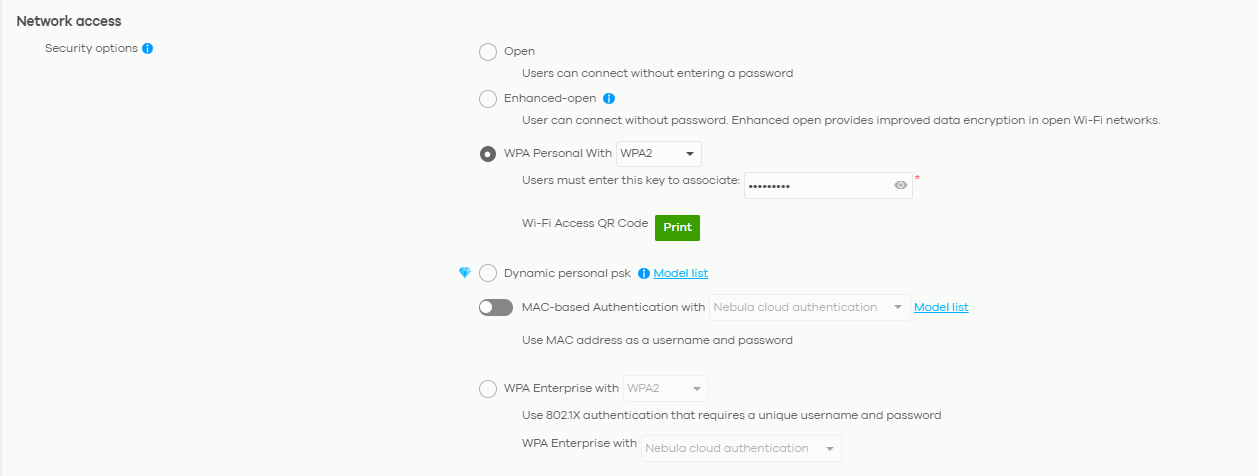

• In the "Security options" section, you can immediately configure authentication if necessary.

• After making all changes, click "Back" and click "Save" for all changes to take effect.

Successful Log:

Note:
1. The following AP features do not work when NAT mode is on.

• 802.11r
• Layer2 isolation
• Dynamic VLAN(cloud authentication, RADIUS server)

2. When NAT mode is enabled on non-supported models, Nebula CC does not show any error message. And non-supported models disable any SSID with NAT mode enabled

3. The IP address lease time is 8 hours.

4. List of access points supporting DHCP & NAT:  NWA50AX, NWA50AX PRO, NWA55AXE, NWA90AX, NWA90AX PRO, NWA110AX, NWA210AX, NWA220AX-6E, NWA1123-AC HD, NWA1123ACv3, NWA1302-AC, NWA5123-AC HD, WAC500, WAC500H, WAC5302D-Sv2, WAC6303D-S, WAX300H, WAX510D, WAX610D, WAX620D-6E, WAX630S, WAX640S-6E, WAX650S, WAX655E
