Nebula - How to configure and use Vendor ID based VLAN

Vendor ID-based VLAN is a professional feature that allows users to allocate network devices from different vendors into different VLANs for easy management and traffic priority.

Scenario:
A user would like to restrict devices to access his network, in this case, he/she may choose Vendor ID Based VLAN to fulfil the requirement.

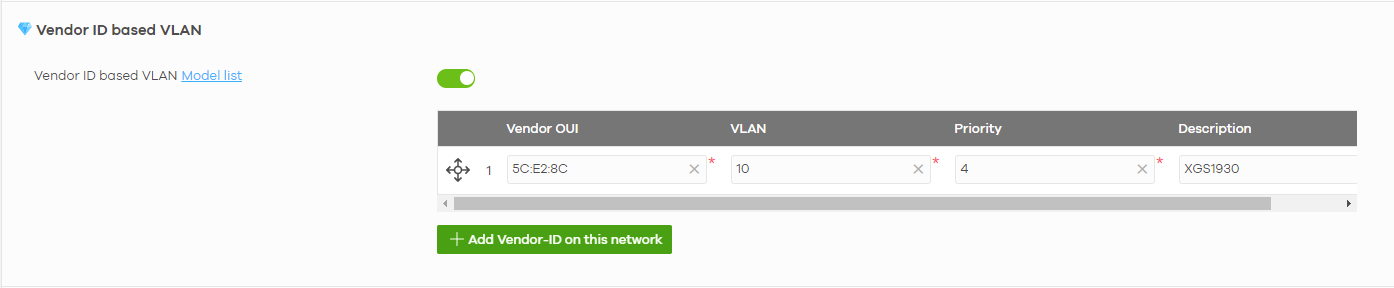

Configuration for switch
Location path:

Site-wide > Configure > Switch > Switch settings > Vendor ID based VLAN

All mac address of switches that begins with 5C:E2:8C will be accessible to this network.

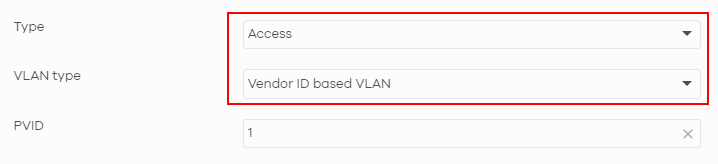

Configuration for switchport
Location path:

Site-wide > Configure > Switch > Switch ports > "select a port"

The port type needs to be changed to access port, otherwise, the VLAN type is hidden.
